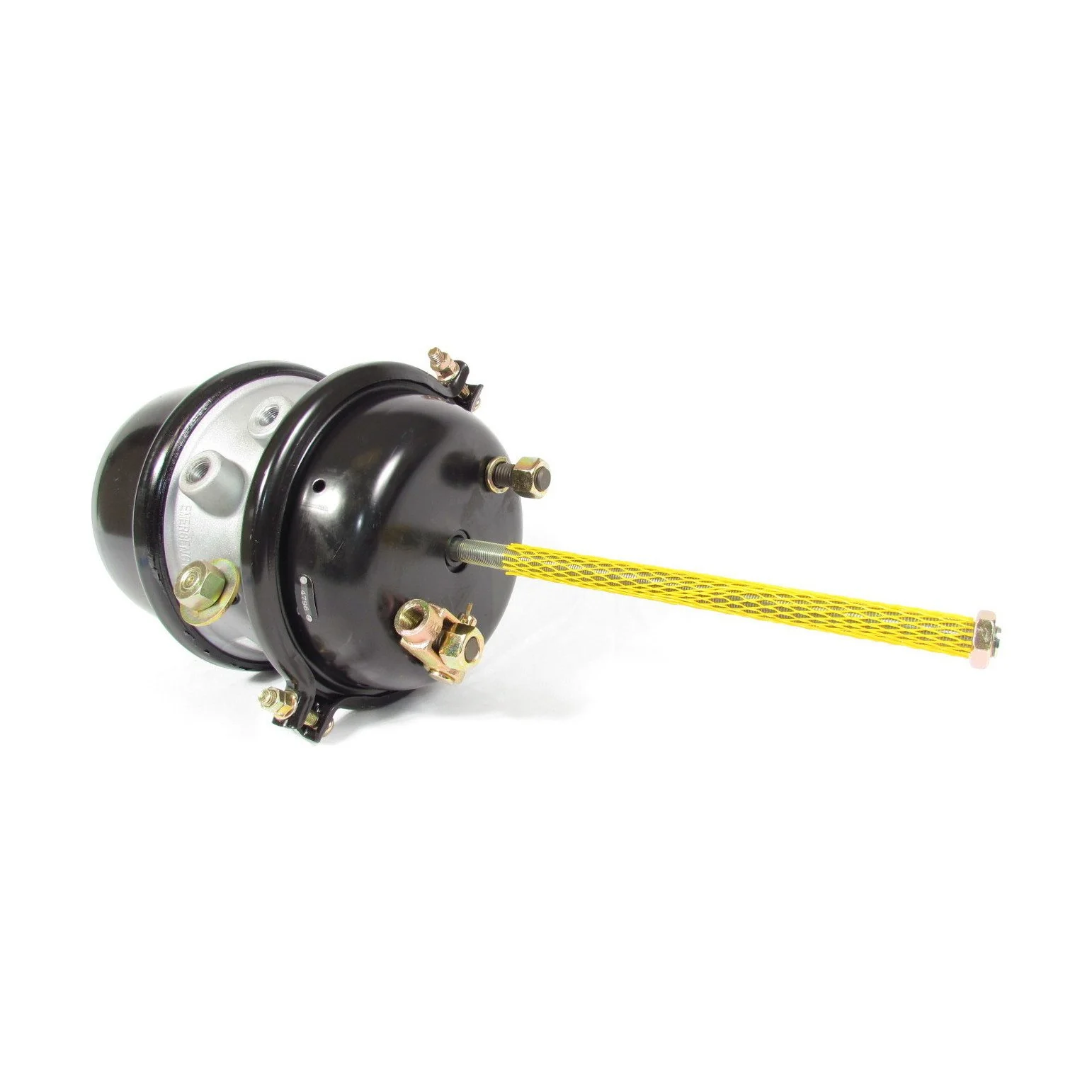

Fortpro Type 3636 Brake Chamber - Standard Stroke, Sealed | F224796

Specifications:

• Brand: Fortpro
• Vehicle Type: Semi-Trucks / Heavy Trucks
• Product Department: Brakes
• Product category : Brake Chambers
• Part Type: Air Brake Chamber
• Also Known as: Brake Canister / Brake Can / Air Brake Canister / Brake Pod / Brake Pots
• Chamber Type: Spring Brake Chamber
• Model: Type 3636, T36/36, T-36/36, 36/36
• Stroke: Standard Stroke
• Stroke Lenght: 3 in.
• Outside Diameter (O.D.): 9.10 in.
• Brake Type Support: Drum
• Serviceability: Sealed
• Push Rod Thread: 5/8-18 UNF-2A
• Push Rod Length: 9 in.
• Service Port: 3/8-18 NPTF
• Emergency/Release Port: 3/8-18 NPTF
• Port Angle: 90 °
• Clevis Included: Included
• Clevis Mounting: Threaded
• Maximum Pressure: 150 PSI
• Mounting Bolt Thread: 5/8-11 UNF-2A
• Mounting Bolt Length: 1.50 in. (38.1 MM)
• Brake System Compatibility: S-Cam
• Chamber Style: Double Diaphragm
• Service Chamber Joint Type: Single Clamp Band

CrossReference:

• Automann: 179.SB3636
• Bendix: 800833, 5007134
• Euclid: E-GC3636
• Flagg: 3636GC
• Haldex: GC3636
